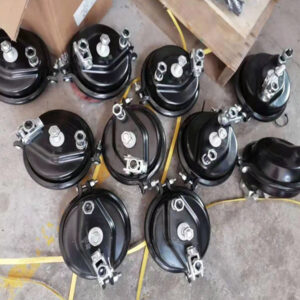

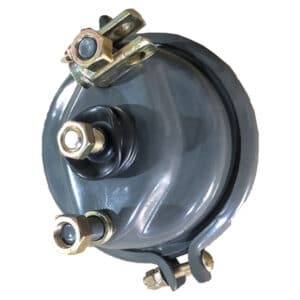

WG9000360101 howo brake chamber is suitable for SINOTRUK and other heavy duty brand trucks. Especially for HOWO, HOWO A7, STEYR and so on. china howo truck co.,limited is mainly produce and sale sinotruk howo genuine truck parts.

description：

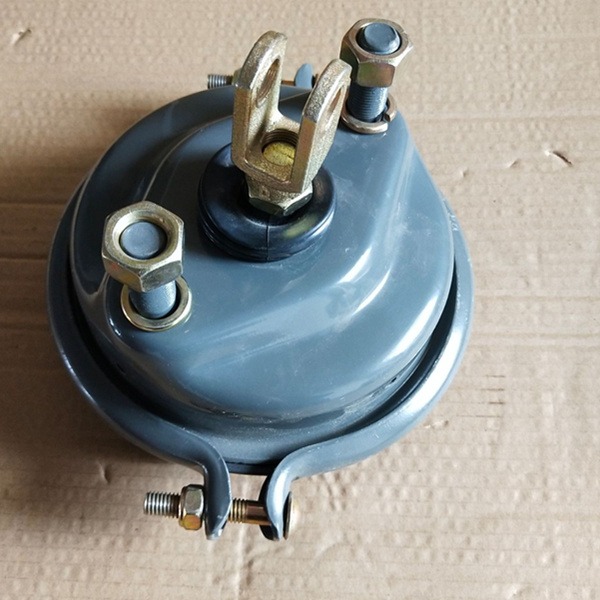

The brake air chamber is a device composed of air inlet, cover, diaphragm, support plate, return spring, shell, push rod, connecting fork, clamp and bolt, etc. It is also called sub-cylinder.

The function of the brake air chamber is to convert the pressure of the compressed air into the mechanical force that makes the brake camshaft rotate to realize the braking action. The brake air chamber is a clamp clamp diaphragm type. The front and rear brake chambers are different in size, but their structure is basically the same.

When the car is braking, air enters the brake air chamber from the air inlet, deforms the diaphragm under the action of air pressure, pushes the push rod, and drives the brake adjustment arm, rotates the brake cam, and removes the brake shoe friction plate. Press against the brake drum to brake.

The WG9000360101 braking force of the diaphragm type air chamber push rod is proportional to the input air pressure; the parking brake sub-chamber is a braking device that uses spring energy storage and deflation. The inflation pressure enters the pressure chamber from port 12 to generate a force acting on the piston.

When the pressure is greater than 0.65 MPa, the force acting on the piston is greater than the preload force of the spring, and the piston moves up to the limit, and the brake is released; When the air is completely vented, the spring pushes the piston down and pushes the main brake push rod to brake. The braking strength is related to the spring preload; when the air pressure in the pressure chamber is lower than 0.65MPa, the braking force produced by the sub-chamber is inversely proportional to the air pressure value. , So you can implement emergency braking.

Paramter:

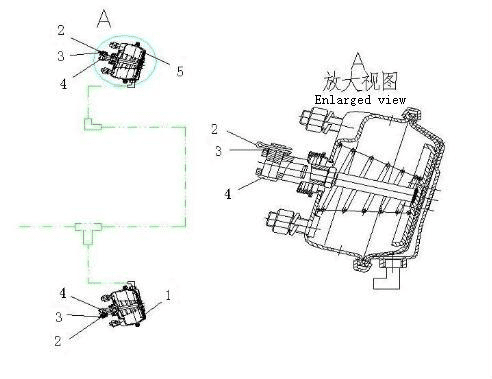

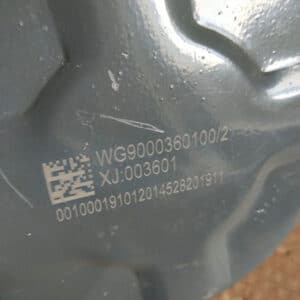

1	WG9000360100	Spring brake actuator -left	1
2	Q5004025	Split pin	2
3	Q40114	Washer	2
4	Q5101440	Shaft	2
5	WG9000360101	Spring brake actuator -right	1
